Electrosurgical Vessel Sealing System – Advin Safeseal+

Electrosurgical Vessel Sealing System

ADVIN Vessel Sealing System (SAFESEAL +)  is a next generation in energy based vessel sealing technology. It presents an improved and safe vessel sealing procedure in medical sector. It is known as Vessel Sealing Machine, Vessel Sealing Diathermy Unit, Monoseal Vessel Sealing System, High Frequence Diathermy Machine With Vessel Sealing Unit, Laparoscopic Vessel Sealing System And Vessel Sealing Device

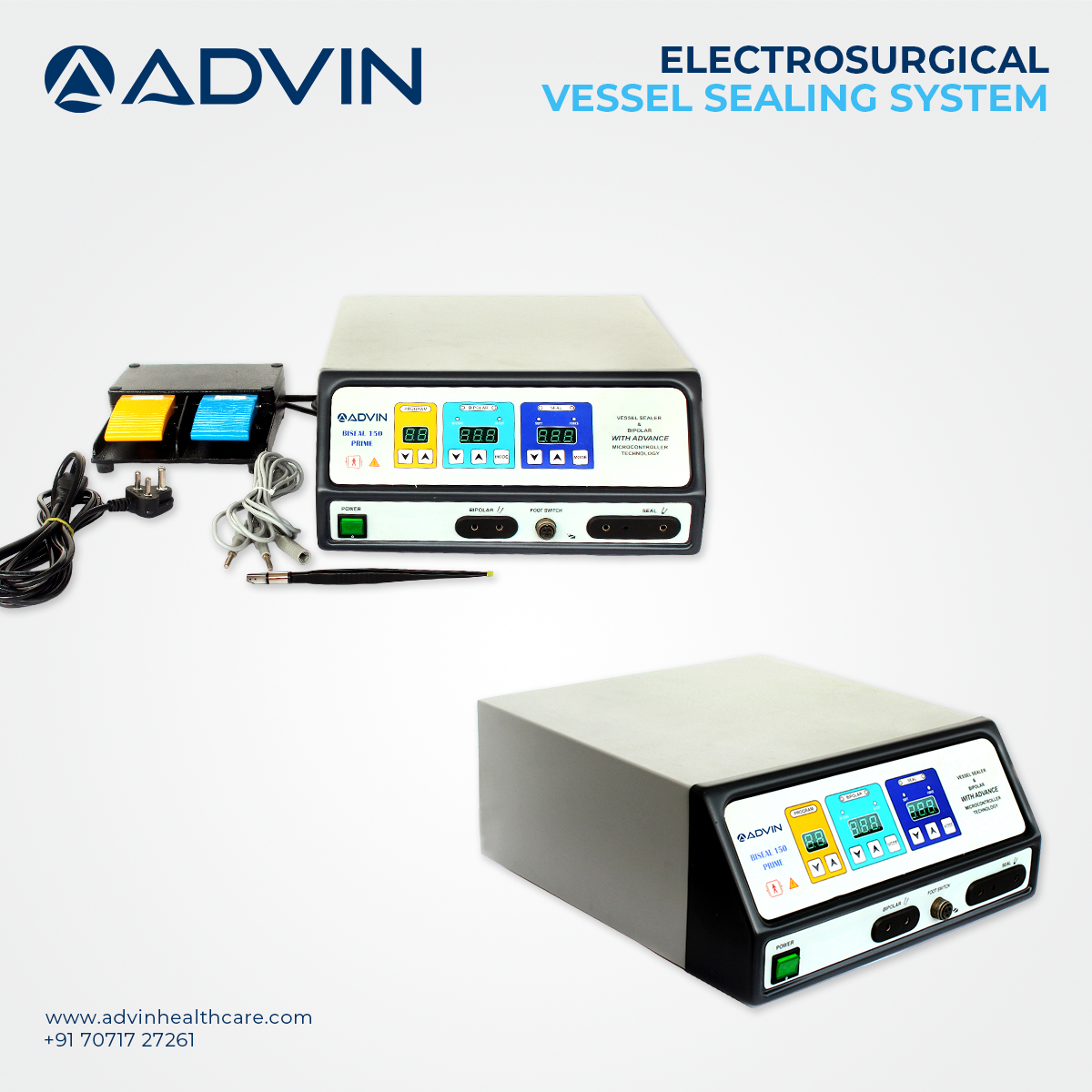

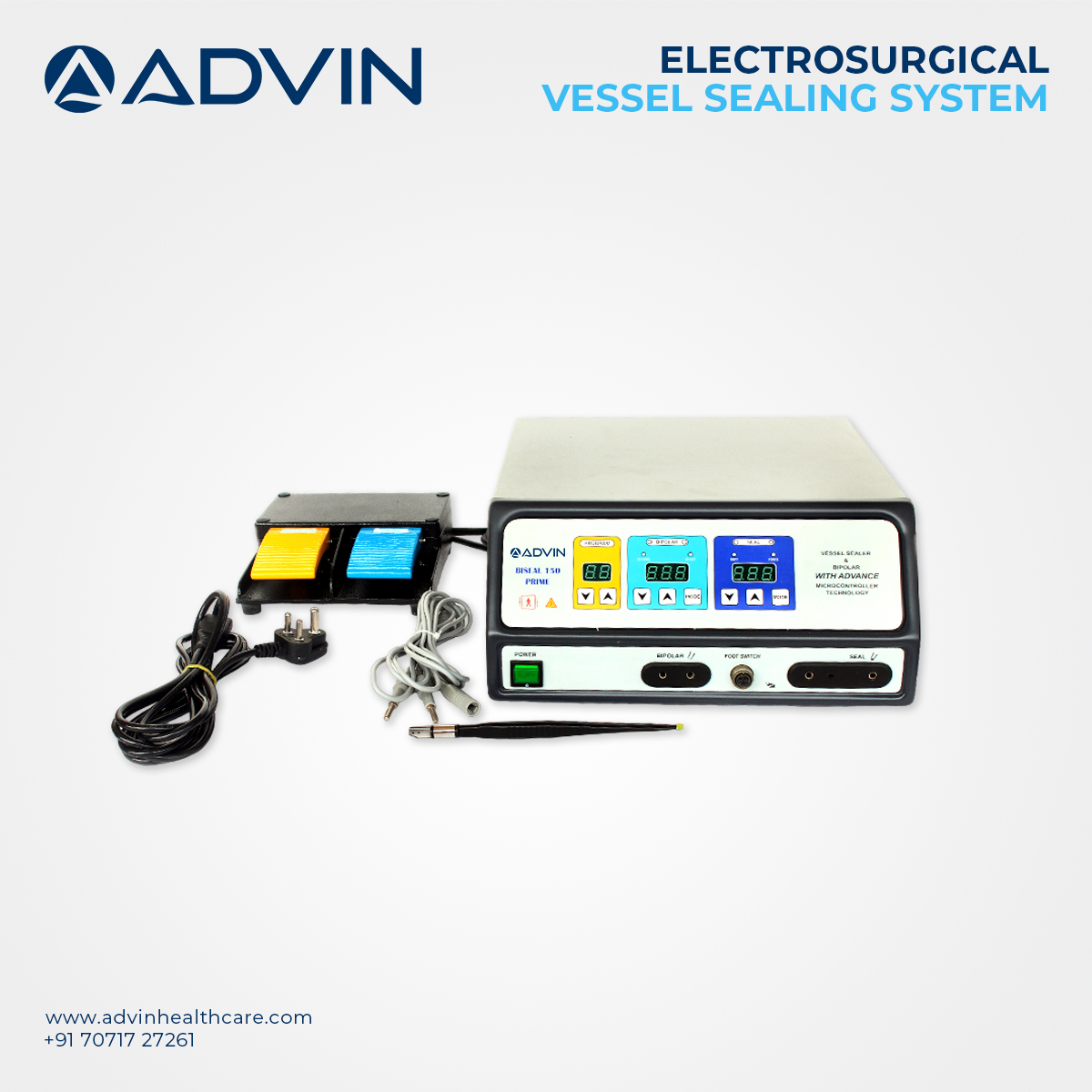

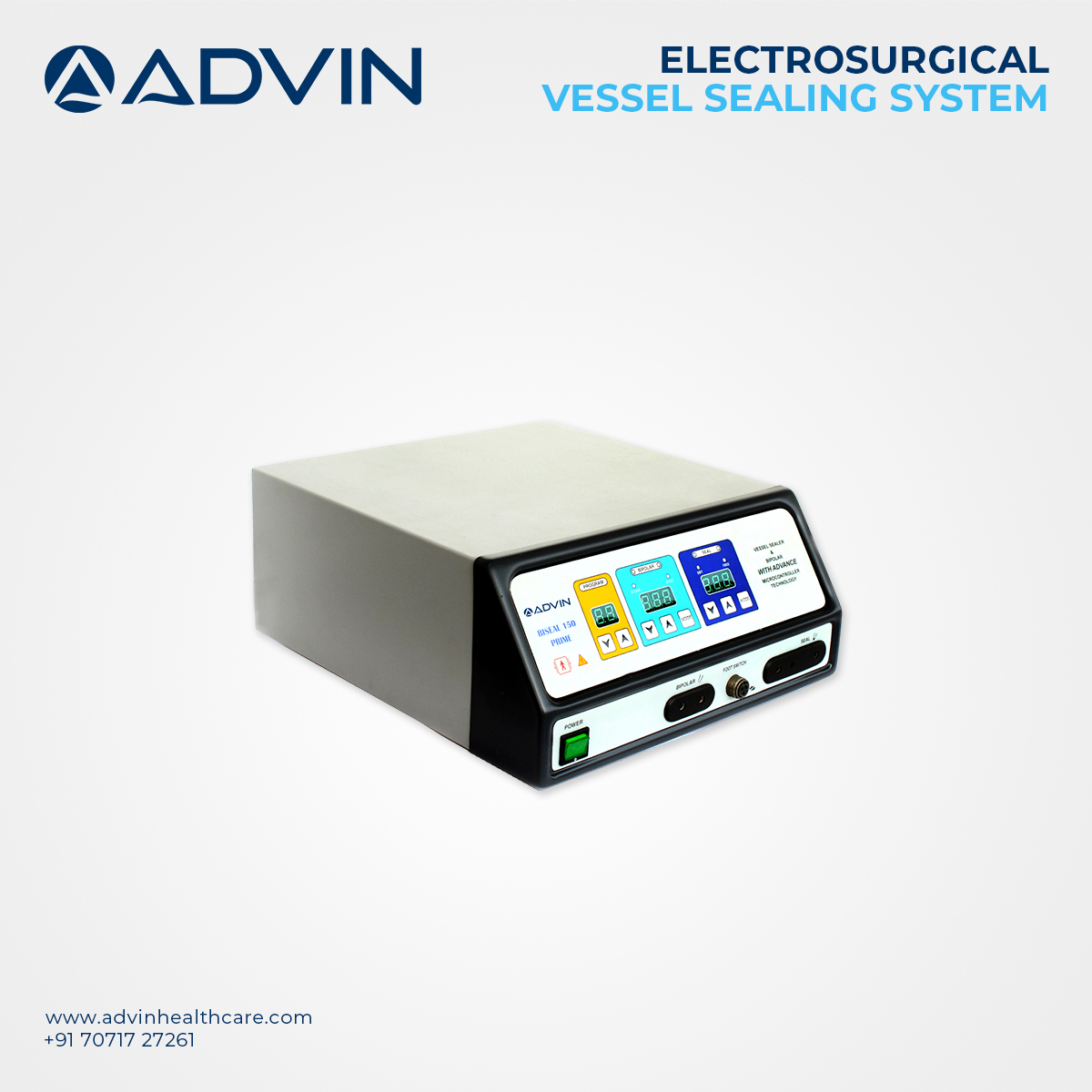

ADVIN SAFESEAL +

Electrosurgical Vessel Sealing System

ADVIN Vessel Sealing System (SAFESEAL +)  is a next generation in energy based vessel sealing technology. It presents an improved and safe vessel sealing procedure in medical sector. It is known as Vessel Sealing Machine, Vessel Sealing Diathermy Unit, Monoseal Vessel Sealing System, High Frequence Diathermy Machine With Vessel Sealing Unit, Laparoscopic Vessel Sealing System And Vessel Sealing Device.

Advanced Features:

  • Permanent vessel occlusion
  • Equipped with all safety features like alarm system and protection from current leakage
  • Ideal for minimal access and open surgery.
  • Vessel fusion with no foreign material
  • Seal can bear high blood pressure
  • Body and cardiac protected design
  • Feedback-controlled response system
  • 99 User settable profiles stores all user preferences
  • Sealing with no sticking or charring
  • Automatically stops energy delivery as soon as the seal cycle is complete.
  • The sealing process is time-saving and yields an optimum result
  • Shorter surgery times & Less blood loss
  • Faster and safe recovery

ADVIN SAFESEAL + Use in :

  • Appendectomy
  • Colectomy
  • Whipple Hemorrhoidectomy
  • Lap-assisted vaginal hysterectomy (LAVH)
  • Nephrectomy
  • Nissen fundoplication
  • Radical hysterectomy
  • Radical prostatectomy
  • Splenectomy
  • Colon resection
  • Abdominal hysterectomy
  • AdrenalectomyL
  • ap-cholecystectomy
  • Liver resection
  • Cystectomy
  • Gastrectomy
  • Gastric bypass
  • Salpingo-oophorectomy
  • Vaginal hysterectomy

Standard Accessories in SET:

  • Vessel Sealing System (01)
  • Vessel Sealer with cutter (Instrument) (01) (VS-C-01)
  • Double Pedal Foot Switch (01) (DPF-01)
  • Power Cord (01) (PC-01)



Vessel Sealing System ( 150 W ) Specification
Dimension 290mmx105mmx260mm
Weight 4 kg
Input supply voltage 100 – 250 V AC +15% @ 50/60hz
SEAL Specification:
Mode Programs Power Load Operating Frequency
Soft 99 150W 300 Ω 1Mhz
Force 99 150W 300 Ω 1Mhz
Bipolar Specification
Mode Programs Power Load Operating Frequency
Bi-coag 99 120W 300 Ω 1Mhz
Bi-cut 99 120W 300 Ω 1Mhz
