Vessel Sealing System With ESU

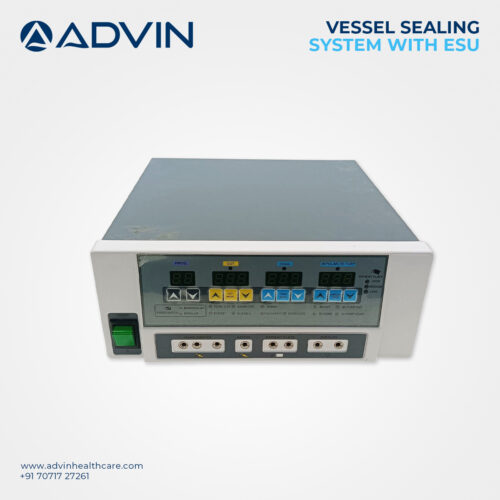

Vessel Sealing System With 400 W Cautery Machine (Advin ELECTROSAFE)

Advin ELECTROSAFE  Model is a best use for Laparoscopic & Gynecology  Surgeon.

Advin ELECTROSAFE  Model is a combination of Advin ELECTRO+ and Advin SAFESEAL+.

This System is a next generation in energy based vessel sealing technology. It presents an improved and safe vessel sealing procedure in medical sector. This unit is combination with 400 W Electrosurgical Unit with all standard features.

Vessel Sealing System With 400 W Cautery Machine (Advin ELECTROSAFE)

Advin ELECTROSAFE  Model is a best use for Laparoscopic & Gynecology  Surgeon.

Advin ELECTROSAFE  Model is a combination of Advin ELECTRO+ and Advin SAFESEAL+.

This System is a next generation in energy based vessel sealing technology. It presents an improved and safe vessel sealing procedure in medical sector. This unit is combination with 400 W Electrosurgical Unit with all standard features.

Vessel Sealing System seals the vessel with body’s own collagen instead of any foreign material that can cause complications.

Electro Diathermy with standard Monopolar and Bipolar outputs and other most advanced functions.

It is known as Vessel Sealing System Monoseal Prime, Monoseal Vessel Sealing Systems, 400W Electrocurgical Unit Cautery Machine with Ligasure Vessel Sealing, surgical cautery and vessel sealing system, Electrosurgical Generator Laparoscopy Vessel Sealing Systems, Diathermy & Vessel Sealing System, Medical Diathermy With Vessel Sealing Machine, Vessel sealing and Bipolar Machine



Advin ELECTROSAFE Features:

  • Permanent vessel occlusion
  • Equipped with all safety features like alarm system and protection from current leakage
  • Ideal for minimal access and open surgery.
  • Vessel fusion with no foreign material
  • Seal can bear high blood pressure
  • Body and cardiac protected design
  • Feedback-controlled response system
  • 99 User settable profiles stores all user preferences
  • Sealing with no sticking or charring
  • Automatically stops energy delivery as soon as the seal cycle is complete.
  • The sealing process is time-saving and yields an optimum result
  • Shorter surgery times & Less blood loss
  • Faster and safe recovery
  • Safe and Very Effective
  • High Efficient Cutting and Coagulation
  • Max output 400 watts
  • Patient Plate Alarm Systems.
  • Accurate Results
  • Safe and Very Effective
  • Best spark gap generators and with minimum cutting effect
  • Single touch switch over from one mode to another mode
  • Works on Generator, Inverter & UPS



Advin ELECTROSAFE Use in :

  • Appendectomy
  • Colectomy
  • Whipple Hemorrhoidectomy
  • Lap-assisted vaginal hysterectomy (LAVH)
  • Nephrectomy
  • Nissen fundoplication
  • Radical hysterectomy
  • Radical prostatectomy
  • Splenectomy
  • Colon resection
  • Abdominal hysterectomy
  • AdrenalectomyL
  • ap-cholecystectomy
  • Liver resection
  • Cystectomy
  • Gastrectomy
  • Gastric bypass
  • Salpingo-oophorectomy
  • Vaginal hysterectomy
  • All Other Surgical procedure with 400 W ESU



Standard Accessories of Advin ELECTROSAFE:

  • Electrosurgical Generator (01)
  • Vessel Sealer with cutter (Instrument) (01)
  • Silicon Patient Plate with Cable (Autoclavable) (01)
  • Monopolar Double Pedal Foot Switch (01)
  • Bipolar Single Pedal Footswitch (01)
  • Set of Electrodes with Chuk Handle (01)
  • Bipolar Forcep with Cable (01)
  • Disposable Pencil (01)
  • Power Cord (01)



Vessel Sealing System ( 150 W ) Specification
SEAL Specification:
Mode Programs Power Load Operating Frequency
Soft 99 150W 300 Ω 1Mhz
Force 99 150W 300 Ω 1Mhz
Bipolar Specification
Mode Programs Power Load Operating Frequency
Bi-coag 99 120W 300 Ω 1Mhz
Bi-cut 99 120W 300 Ω 1Mhz



Electro Surgical Unit (400 W) Specification
                                                                                      CUT
Mode Max Power Load Crest Factor
Pure cut Mode 400W 300E 1.5
Blend 1 Mode 250W 300E 1.5
Blend 2 Mode 200W 300E 1.5
Endocut Mode 99% 300E 1.5
                                                                                     COAGULATION
Mode Max Power Load Crest Factor
Spray Mode 120W 300E 7
Force Mode 120W 300E 6.5
Fulgurate Mode 150W 300E 6
Desiccate Mode 150W 300E 6
                                                                              BIPOLAR MODE
Mode Max Power Load Crest Factor
Micro Mode 80W 100E 1.5
Macro Mode 80W 100E 1.5
CUT Mode 100W 100E 1.5
Auto Mode 150W 100E 1.5
