Bipolar Saline With 400W ESU

Bipolar Saline Unit With 400 W Cautery Machine (Advin 2400)

Advin 2400 is a combination of Bipolar Saline Plazma Resection Unit  combination with with 400 W Cautery Machine (Advin BI TURP + Advin Electro +) is an advanced unit use for Bipolar resection of Prostate (Bipolar Saline TURP) procedure and also use in all procedures with 400 W ESW.

Bipolar Saline Electrosurgical Unit provides bipolar current to remove the prostate tissue. Resection is done under saline (NaCl) by using Bipolar Loop.

Bipolar Saline Unit With 400 W Cautery Machine (Advin 2400)

Advin 2400 is a combination of Bipolar Saline Plazma Resection Unit  combination with with 400 W Cautery Machine (Advin BI TURP + Advin Electro +) is an advanced unit use for Bipolar resection of Prostate (Bipolar Saline TURP) procedure and also use in all procedures with 400 W ESW.

Bipolar Saline Electrosurgical Unit provides bipolar current to remove the prostate tissue. Resection is done under saline (NaCl) by using Bipolar Loop.

Electro Diathermy with standard Monopolar and Bipolar outputs and other most advanced functions.

It is known as Saline Plasma BiTUR Electrocautery Machine, Plasma Bipolar Urology Cautery Machine, Vessel sealing and Bipolar functions, Saline Plasma Bipolar Resection Electro-Surgical Unit, Vessel Sealing Unit With Electrosurgical Diathermy, Vessel Sealing System, Plasma Bipolar TURP Cautery Machine.



Advin 2400 use in :

  • TURP (Transurethral resection of the prostate )
  • TCRE (Trans Cervical Resection of the Endometrium)
  • Hysteroscopy
  • Arthroscopic surgery
  • All other surgical procedure with 400 W ESU.

Advantages of Advin 2400

  • Use in Monopolar & Bipolar TURP Procedures
  • Use with Saline Water (0.9% NACL)
  • Advanced Procedure for TURP
  • Less Operative Duration
  • Less Hospitalization
  • Fast Patient Recovery
  • Can be perform on Pacemaker and Orthopedic implanted patient
  • Accurate output
  • Safe and Very Effective
  • High Efficient Cutting and Coagulation
  • Max output 400 watts
  • Body Protected and cardiac protected design.
  • Patient Plate Alarm Systems.
  • Accurate Results
  • Safe and Very Effective
  • 99 User settable profiles stores all user preferences
  • Best spark gap generators and with minimum cutting effect
  • Single touch switch over from one mode to another mode
  • Works on Generator, Inverter & UPS

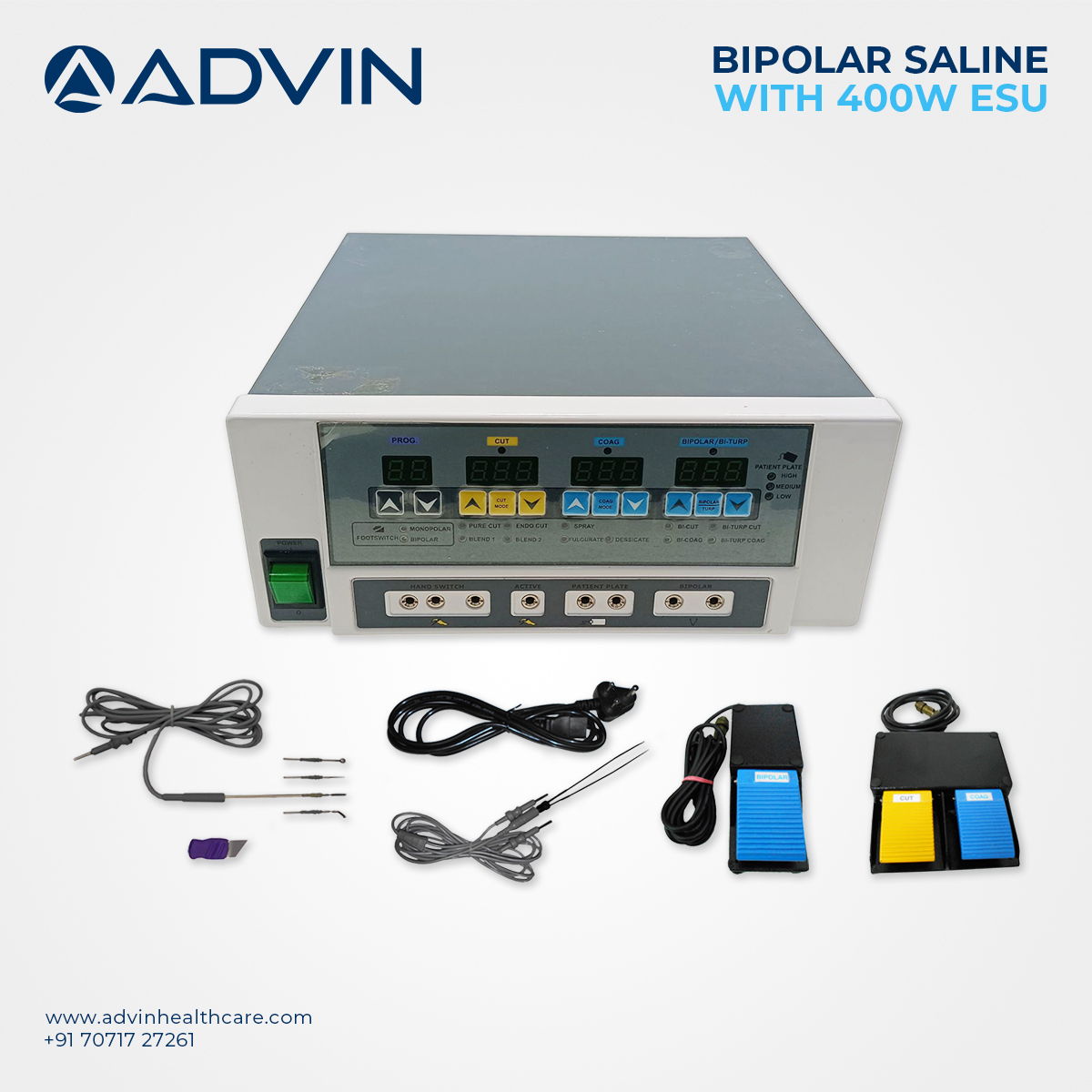

Standard Accessories Advin 2400:

  • Electrosurgical Unit (01)
  • Silicon Patient Plate with Cable (Autoclavable) (01)
  • Monopolar Double Pedal Foot Switch (01)
  • Bipolar Single Pedal Footswitch (01)
  • Set of Electrodes with Chuk Handle (01)
  • Bipolar Forcep with Cable (01)
  • Disposable Pencil (01)
  • Power Cord (01)



Bipolar Saline Plazma Resection Unit Specification (Advin 2400)



BI TUR MODE
Mode Max Power Load Crest Factor
Saline CUT 250W 100E 1.5
Saline COAG 150W 100E 3





Electro Surgical Unit (400 W) Specification
                                                                                      CUT
Mode Max Power Load Crest Factor
Pure cut Mode 400W 300E 1.5
Blend 1 Mode 250W 300E 1.5
Blend 2 Mode 200W 300E 1.5
Endocut Mode 99% 300E 1.5
                                                                                     COAGULATION
Mode Max Power Load Crest Factor
Spray Mode 120W 300E 7
Force Mode 120W 300E 6.5
Fulgurate Mode 150W 300E 6
Desiccate Mode 150W 300E 6
                                                                              BIPOLAR MODE
Mode Max Power Load Crest Factor
Micro Mode 80W 100E 1.5
Macro Mode 80W 100E 1.5
CUT Mode 100W 100E 1.5
Auto Mode 150W 100E 1.5
